| Origin | JAPAN |
| Feed coil max. Wt. | 28 MT |
| Feed coil max. OD | 2000 mm |
| Feeding coil ID (mm) | 508 to 610 |
| Thickness (mm) | 0.30 to 2.50 |
| Width (mm) | 300 to 1400 |
| Capacity (MT/month) | 5000 |
| Output Length (mm) | -- |
| Speed (m/min) | 120 |
| Output Coil / Bundle wt. | Up to 10 MT |
| Tolerance | width: +/- 0.1 mm |
| Burr level | < 20 microns |
| Camber | 1 mm / m |
| Adv. | Loop mode operation |
| UTS (MPA) | 500 |
| YS (MPA) | 360 |
x
S
M
P
C
Fill the Form
Infrastructure

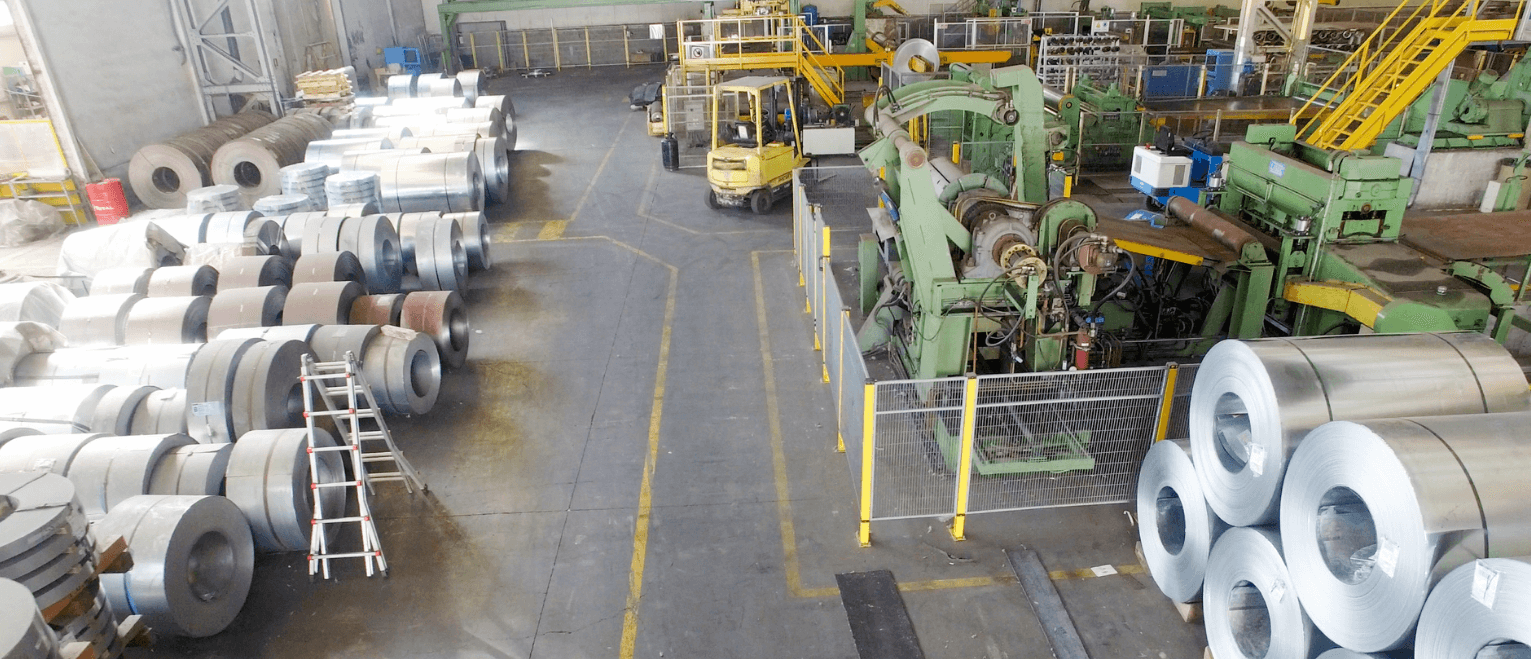

Our Infrastructure
At SMPC Industries, we are dedicated to maintaining a robust and state-of-the-art infrastructure meticulously crafted to address the evolving needs of the sheet metal processing industry. Our unwavering commitment to precision, efficiency, and innovation is evident in every facet of our well-equipped facilities.
-
Slitting
-
Cut-to-Length (CTL)
Machine Line CTL Line 1 CTL Line 2 CTL Line 3 CTL Line 4 Manufacturer IOWA SONADA Blue Sky KOWA KOKEN Origin USA JAPAN CHINA JAPAN Feed coil max. Wt. 25 MT 15 MT 30 MT 5 MT Feed coil max. OD 1625 mm 1800 mm 2000 mm 1500 mm Feeding coil ID (mm) 508 to 610 508 to 610 508 to 760 508 to 610 Thickness (mm) 0.30 to 3.10 0.30 to 1.60 3.0 to 12.00 0.30 to 2.00 Width (mm) 300 to 1500 200 to 1300 800 to 2000 100 to 650 Capacity (MT/month) 2000 2500 3000 1200 Output Length (mm) 600 to 4000 300 to 3200 Up to 9000 300 to 2000 Speed (m/min) 30 80 30 50 Output Coil / Bundle wt. Up to 5 MT Up to 5 MT Up to 8 MT Up to 2 MT Tolerance Length: +/- 2 mm Diagonal: -2 / 2500 mm Length: +/- 1 mm Diagonal: -1 / 2500 mm Length: +/- 1 mm Diagonal: -1 / 2000 mm Length: +/- 1 mm Diagonal: -1 / 2000 mm Burr level < 50 microns < 50 microns < 50 microns < 50 microns Camber -- -- -- -- Advantage * Rough leveler (Ø 130 X 07 rolls) * Fine Leveler (Ø50 X 17 rolls) * 6 Roll High Leveler * Rough leveler (Ø90 X 11 rolls) * Fine Leveler (Ø50 X 21 rolls) * 4 Roll High Leveler * Rough leveler (Ø130 X 7 rolls) * Fine Leveler (Ø50 X 17 rolls) * 6 Roll High Leveler * Loop Mode at Pre- Shearing * Fine Leveler (Ø40 X 15 rolls) * 4 Roll High Leveler UTS (MPA) 480 550 500 600 YS (MPA) 340 380 400 450 -
Rewinding
Origin JAPAN Feed coil max. Wt. 28 MT Feed coil max. OD 2000 mm Feeding coil ID (mm) 508 to 610 Thickness (mm) 0.30 to 2.50 Width (mm) 300 to 1400 Capacity (MT/month) 5000 Output Length (mm) -- Speed (m/min) 120 Output Coil / Bundle wt. Up to 10 MT Tolerance width: +/- 0.1 mm Burr level < 20 microns Camber 1 mm / m Adv. Loop mode operation UTS (MPA) 500 YS (MPA) 360 -
CRANE & Other Machinery
- 11 EOT Cranes (40 MT, 30 MT, 10 MT, 5 MT)
- 15,000 MT of Raw Material storage capacity
- 10,000 MT of Finished Good storage capacity
- 2 Units of 250 KVA generator set.
- Motorized packing facility for Slit coils
-
Packing
- HDPE and LDPE Packing
- Wood Pallets
- Tailored to Customer's Weight Specifications
- Expert handling ensures the safety and integrity of materials during transit and storage.
-
Integrated Technology
Our production planning is fortified by advanced software that optimizes workflows, streamlines processes, and enhances overall operational efficiency. This integrated system allows for meticulous scheduling, resource allocation, and real-time monitoring. -
Traceability & Transparency
From the moment raw materials enter our facilities to the dispatch of the finished products, our software enables comprehensive manufacturing tracking. This transparency ensures that every step of the production process is traceable and accountable, contributing to our commitment to quality control. -
Live Updates for Clients
One of the hallmarks of our client-centric approach is the provision of live status updates. Our software empowers us to keep clients informed in real-time, offering a detailed overview of the manufacturing progress. Clients can access live updates on production milestones, quality checks, and delivery timelines, fostering transparency and trust.
ISO 9001:2015 Certified Quality Control
Within our infrastructure, we feature dedicated spaces for quality control, equipped with advanced inspection tools. Our commitment to delivering the highest quality products is reinforced by stringent quality checks at every stage of the manufacturing process. This includes dimensional accuracy checks, material inspections, and thorough testing to meet or exceed industry standards. Our ISO 9001:2015 certification stands as a testament to our unwavering dedication to quality assurance.
